DESCRIPTION

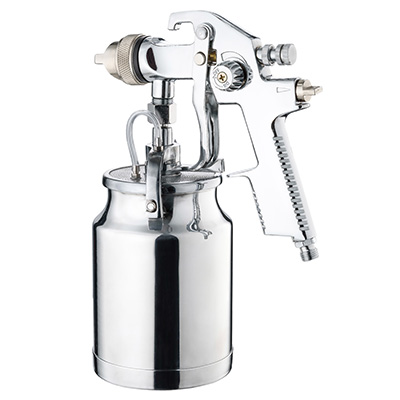

HVLP High Volume Low Pressure Spray Gun
100% manually adjusted nozzle sets ensure the constant
high,for complete guns as well as spare nozzle sets.
The durable air caps are made of brass(not of aluminum) thus ensuring a long life time.
Suitable for waterborne paints-paint needle and nozzle are made of stainless
steel and the spray gun body has been carefully anodized.
The carefully anodized spary gun surface also reduces the need for cleaning.
With the continuous round/flat spray fan control the spray pattern can be
adjusted to any object.
HVLP High Volume Low Pressure Spray Gun
100% manually adjusted nozzle sets ensure the constant
high,for complete guns as well as spare nozzle sets.
The durable air caps are made of brass(not of aluminum) thus ensuring a long life time.
Suitable for waterborne paints-paint needle and nozzle are made of stainless
steel and the spray gun body has been carefully anodized.
The carefully anodized spary gun surface also reduces the need for cleaning.
With the continuous round/flat spray fan control the spray pattern can be
adjusted to any object.
| Model | AB17S |
|---|---|
| Type of Feed | Suction |
| Standard Nozzle | Φ1.4mm |
| Optional Nozzle | Φ1.2/1.4/1.7/1.8/2.0mm |
| Operating Pressure | 3.5-5.0bar |
| Pattern width | 180-250mm |
| Air Consumption | 8.0-11.O cfm |
| Paint Capacity | 1000cc |
| Color Box | 20PCS(59x38.5x32cm),14.5/12KGS |
