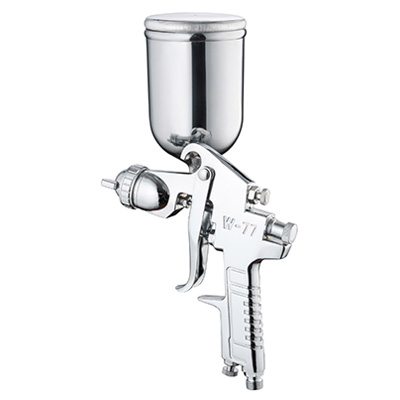

DESCRIPTION
Nozzle sizes ranging 1.0 to 1.8mm for paint and filler work.
Mainly rsed for spray painting surface finishes on products
such as furniture,car,home electric appliances and machinery.
100% manually adjusted nozzle sets ensure the constant
high,for complete guns as well as spare nozzle sets.
Nozzle sizes ranging 1.0 to 1.8mm for paint and filler work.
Mainly rsed for spray painting surface finishes on products
such as furniture,car,home electric appliances and machinery.
100% manually adjusted nozzle sets ensure the constant
high,for complete guns as well as spare nozzle sets.

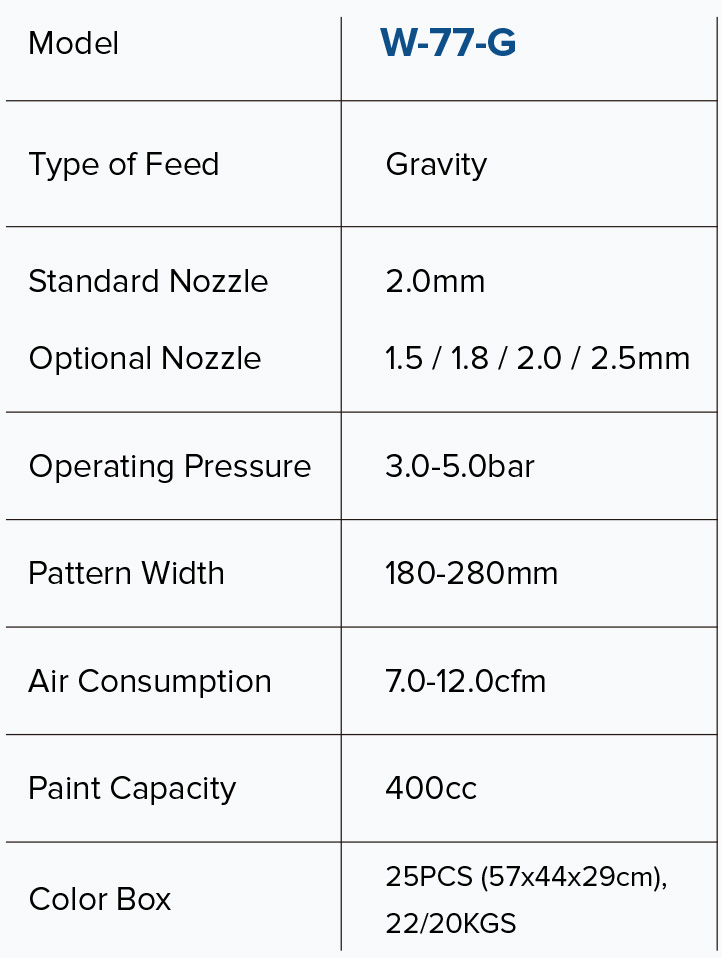

| Model | W-77-G |
|---|---|
| Type of Feed | Gravity |
| Standard Nozzle | Φ2.0mm |
| Optional Nozzle | Φ1.5/1.8/2.0/2.5mm |
| Operating Pressure | 3.0-5.0bar |
| Pattern width | 180-280mm |
| Air Consumption | 7.0-12.0 cfm |
| Paint Capacity | 400cc |
| Color Box | 25PCS(57x44x29cm),22/20KGS |
