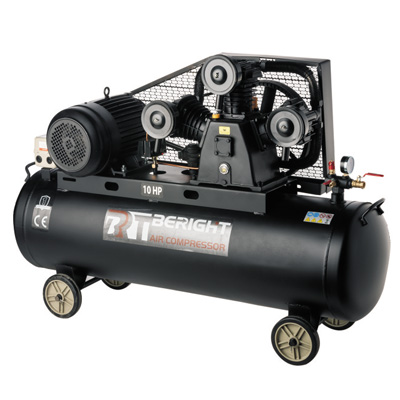

Belt Driven Comrpessor

Model:FX-0.9/8


Model Power Speed Theoretic Displacement Max Pressure Tank Weight Dimensions

Hp Kw Rpm L/min Cfm Bar Psi L/Gal Kg LxWxH(cm)
FX-0.17/8 2 1.5 1020 207 7.3 8 115 50/15.6 60 84*41*73
FX-0.17/8 2 1.5 1020 207 7.3 8 115 100/26.5 86 105*42*83
FX-0.25/8 3 2.2 1020 320 11.3 8 115 100/26.5 88 105*42*83
FX-0.25/8 3 2.2 1020 320 11.3 8 115 150/39.6 102 134*45*86
FX-0.25/8 3 2.2 1020 320 11.3 8 115 200/53 118 134*50*90
FX-0.36/8 4 3 1050 503 17,8 8 115 150/40 112 131*46*89
FX-0.36/8 4 3 1050 503 17.8 8 115 200/53 127 145*55*100
FX-0.48/8 5.5 4 850 573 20.2 8 115 200/53 215 135*50*98
FX-0.6/8 5.5 4 850 725 25.6 8 115 150/40 116 131*50*95
FX-0.6/8 5.5 4 850 725 25.6 8 115 200/53 134 135*50*98
FX-0.67/8 7.5 5.5 850 859 30.3 8 115 120/32 160 125*55*94
FX-0.67/8 7.5 5.5 850 859 30.3 8 115 200/53 185 137*57*101
FX-0.9/8 10 7.5 850 1087 38.4 8 115 200/53 189 164*56*107
FX-0.9/8 10 7.5 850 1087 38.4 8 115 300/80 220 149*57*108
