Current Position: Home Products Belt Driven Comrpessor

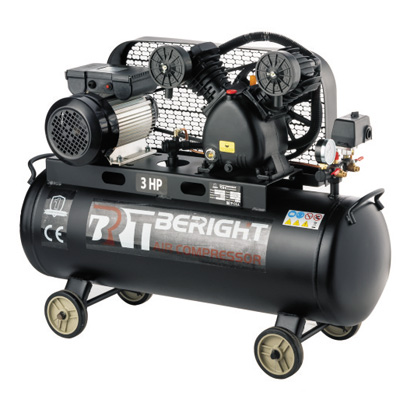

Belt Driven Comrpessor

Model:FY-0.25/8


Model Power Speed Theoretic Displacement Max Pressure Tank Weight Dimensions

Hp Kw Rpm L/min Cfm Bar Psi L/Gal Kg LxWxH(cm)
FY-0.12/8 1.5 1.1 1020 202 7.1 8 115 60/16 67 95*41*73
FY-0.12/8 l.B 1.1 1020 202 7.1 8 115 100/26.5 82 105*42*83
FY-0.17/8 2 1.5 1020 207 7.3 8 115 50/15.6 60 84*41*73
FY-0.17/8 2 1.5 1020 207 7.3 8 115 100/26.5 86 105*42*83
FY-0.25/8 3 2.2 1020 320 11.3 8 115 100/26.5 88 105*42*83
FY-0.25/8 3 2.2 1020 320 11.3 8 115 150/39.6 102 134*45*86
FY-0.25/8 3 2.2 1020 320 11.3 8 115 200/53 118 134*50*90
FY-0.36/8 4 3 1050 503 17.8 8 115 100/26.5 93 116*46*81
FY-0.36/8 4 3 1050 503 17.8 8 115 150/40 112 131*46*89
FY-0.36/8 4 3 1050 503 17.8 8 115 200/53 127 145*55*100
FY-0.6/8 5.5 4 850 725 25.6 8 115 150/40 173 131*50*95
FY-0.6/8 5.5 4 850 725 25.6 8 115 200/53 140 135*50*98
FY-0.9/8 10 7.5 8B0 1087 38.4 8 115 200/53 191 135*50*98
FY-0.9/8 10 7.5 850 1087 38.4 8 115 300/80 220 149*57*108
